Burlington Medical T-Base Porta Shield

Burlington Medical

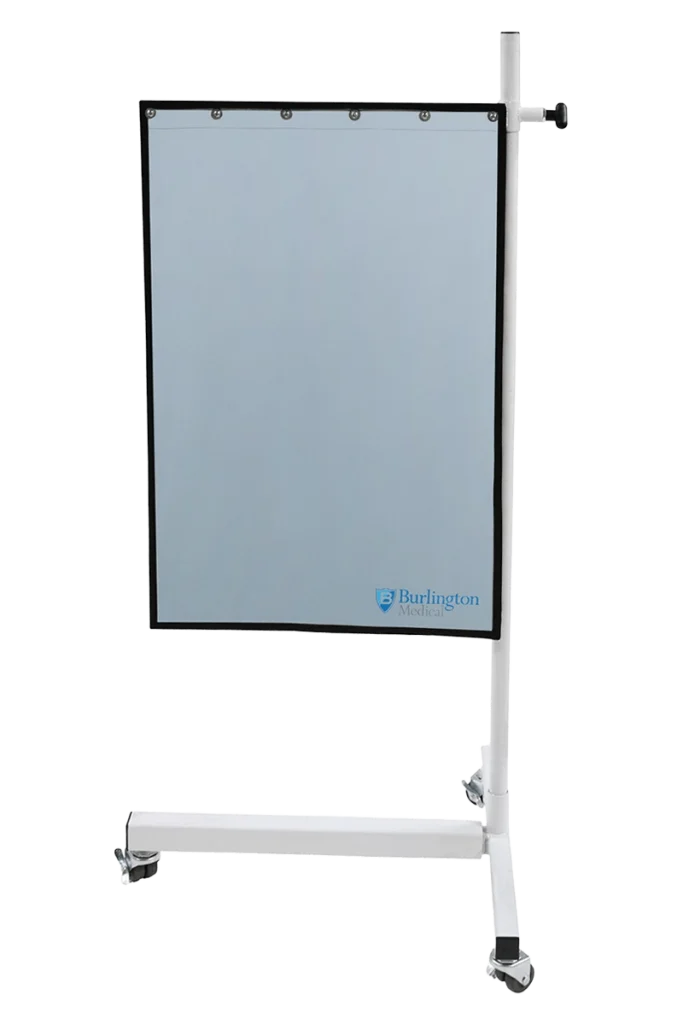

The Burlington Medical PTS4 T-Base Porta Shield (PTS4) provides reliable, adjustable scatter-radiation protection in a compact, easy-to-position mobile design. Built with durable all-steel construction, the shield features a stable T-base frame and smooth-glide casters that allow clinicians to maneuver it quickly around equipment or into tight procedural spaces. A spring-loaded Posi-Lock arm enables fast, secure height adjustments, extending from 8 inches up to 60 inches to support a wide range of procedural setups. The shield includes a 0.5 mm Pb-equivalent protective drape designed to deliver added coverage where floor-level or flexible positioning is required.

Lightweight yet durable, the PTS4 is ideal for fluoroscopy, interventional radiology, portable imaging, and any environment where mobile scatter protection is needed. Locking casters keep the shield securely in place once positioned.

Request a Quote

Description

The Burlington Medical T-Base Porta Shield (PTS4) is a mobile, height-adjustable radiation shield featuring all-steel construction, a stable T-base design, and smooth-glide casters. Its spring-loaded Posi-Lock arm adjusts from 8 to 60 inches, supporting varied procedural needs. The shield includes a 0.5 mm Pb-equivalent protective drape and locking casters for stable positioning.
Core Material

0.5 mm Pb equivalence
Specifications

Mobile radiation-protection Porta Shield

All-steel construction for durability

T-base design enhances stability and maneuverability

Smooth-glide casters for easy movement around equipment

Locking castor wheels to secure shield in place

Spring-loaded Posi-Lock height adjustment arm

Maximum arm height: 60″

Minimum arm height: 8″

0.5 mm Pb-equivalent protective drape

Drape size: 36″ H × 24″ W

Durable, easy-clean gray vinyl (996) drape

Approximate weight: 36 lbs

Ideal for fluoroscopy, interventional suites, portable radiography, and general imaging environments

What To Consider When Purchasing a Maternity Lead Apron

Selecting the right radiation protection equipment ensures staff comfort, safety, and compliance with your facility’s specific needs.

Talk with a RadCare Specialist

Lead Equivalency and Protection Level

Lead aprons are available in 0.25mm, 0.35mm, and 0.5mm lead equivalency, with 0.5mm providing the highest protection level and blocking approximately 95-99% of scatter radiation. Your department’s exposure levels and procedure types will determine which protection level is appropriate for your team.

Weight and Material Options

Standard lead aprons are the heaviest option, while lead-composite and lead-free alternatives can be 16-40% lighter while maintaining the same protection levels. Lighter-weight options reduce fatigue and upper back stress, making them especially suitable for staff wearing protection during long interventional procedures or all-day in the OR.

Photo of healthcare professional wearing protective gown, illustrating proper PPE use and reinforcing radiation and infection control safety.

Style and Coverage Type

Front protection aprons provide quick on-off convenience for shorter procedures, while wrap-around or vest and skirt combinations offer 360-degree protection for staff with their backs exposed to scatter radiation. Consider your team’s procedural environment and positioning when selecting between frontal, wrap, or two-piece protection styles.

Comfort Features and Fit

Proper fit and weight distribution significantly impact long-term wearability and staff compliance with radiation safety protocols. Look for features like adjustable closures, padded shoulders, ergonomic design, and sizing options that accommodate your team’s range of body types to ensure garments are worn consistently and correctly.

On site photo showing RadCare Services professionals working within a healthcare facility, reinforcing hands on expertise, safety practices, and operational credibility.

RCS Insights

“When choosing a mobile radiation shield, the biggest considerations are stability, maneuverability, and the level of lead protection. Look for shields with strong locking casters and frames that stay steady even when moved frequently between rooms.

Burlington’s mobile shields excel in durability and smooth handling, making them a dependable choice for facilities that want long-term performance and easy daily use.”

Justin McKay

Co-Founder of RCS
